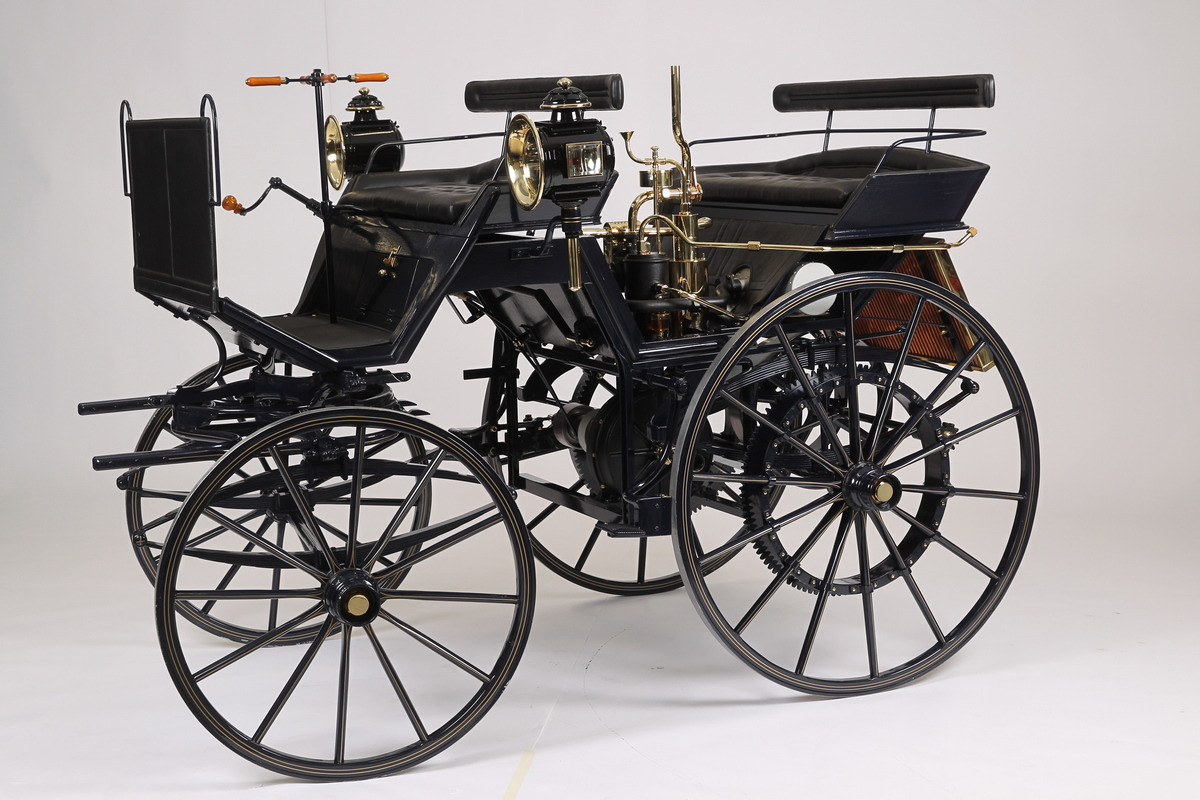

1886 Daimler Motorized Coach

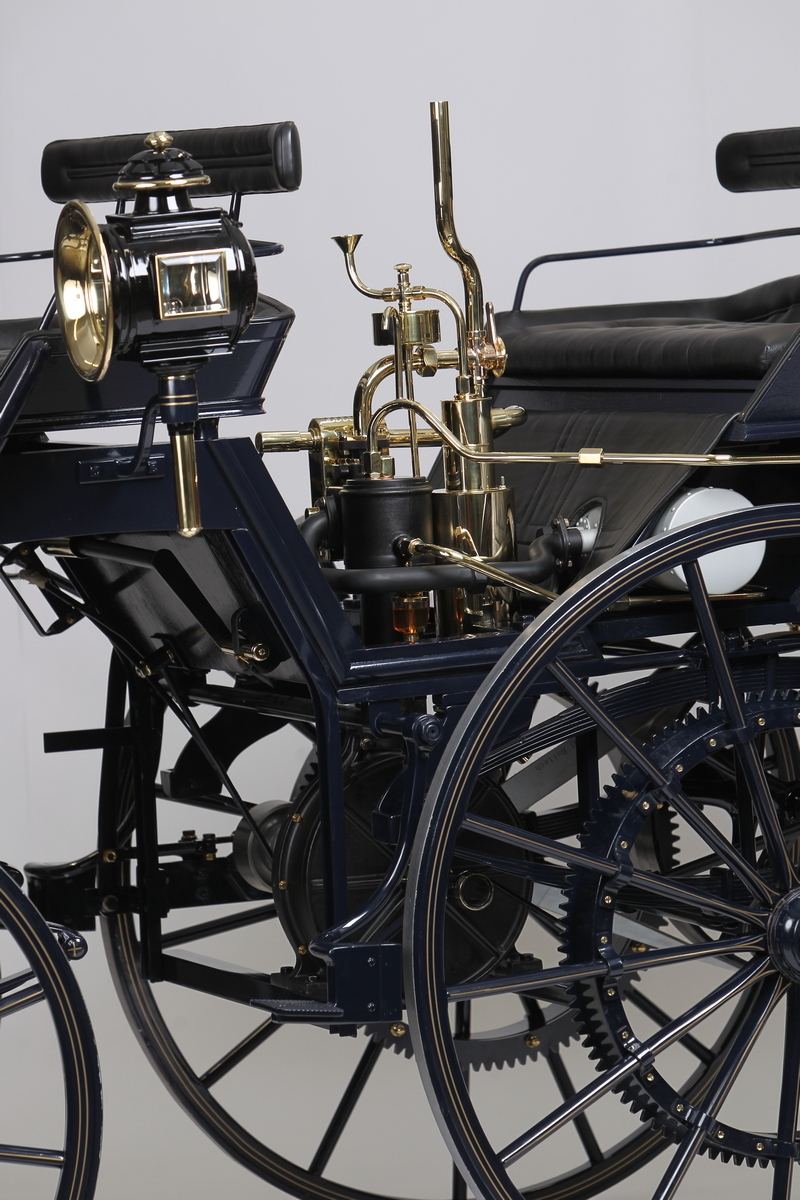

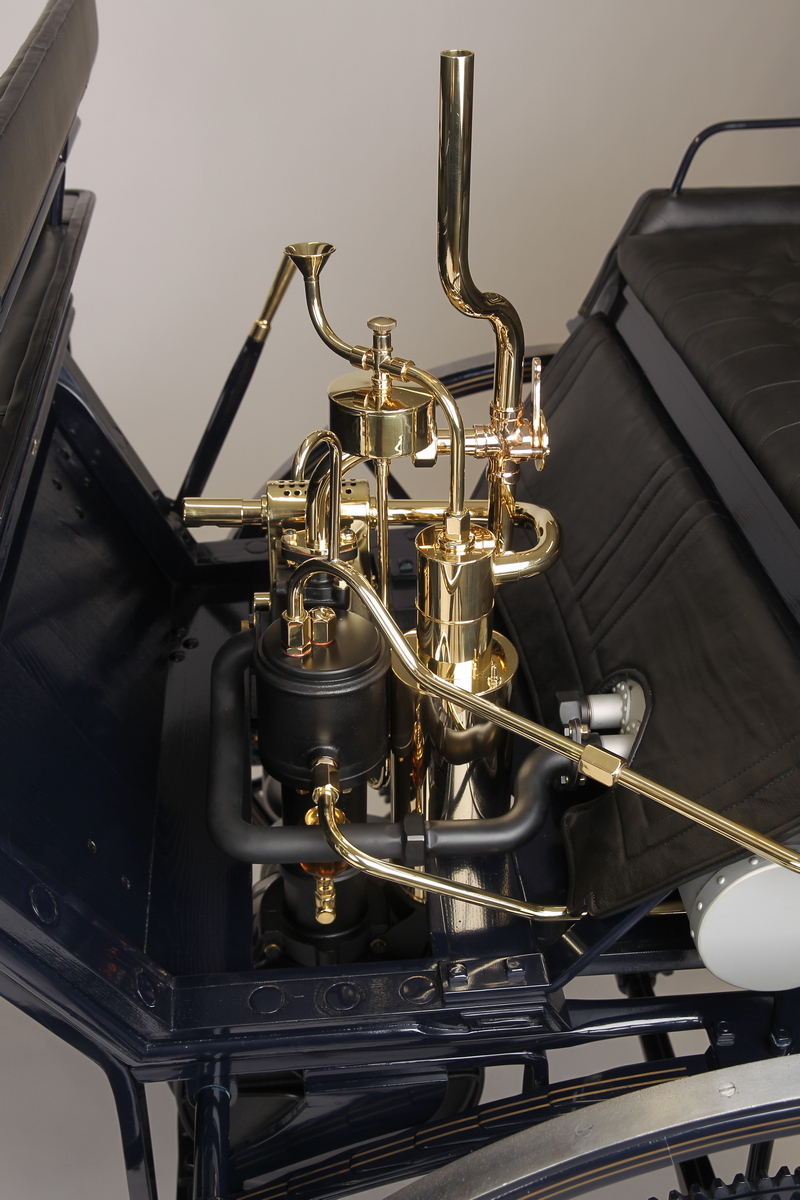

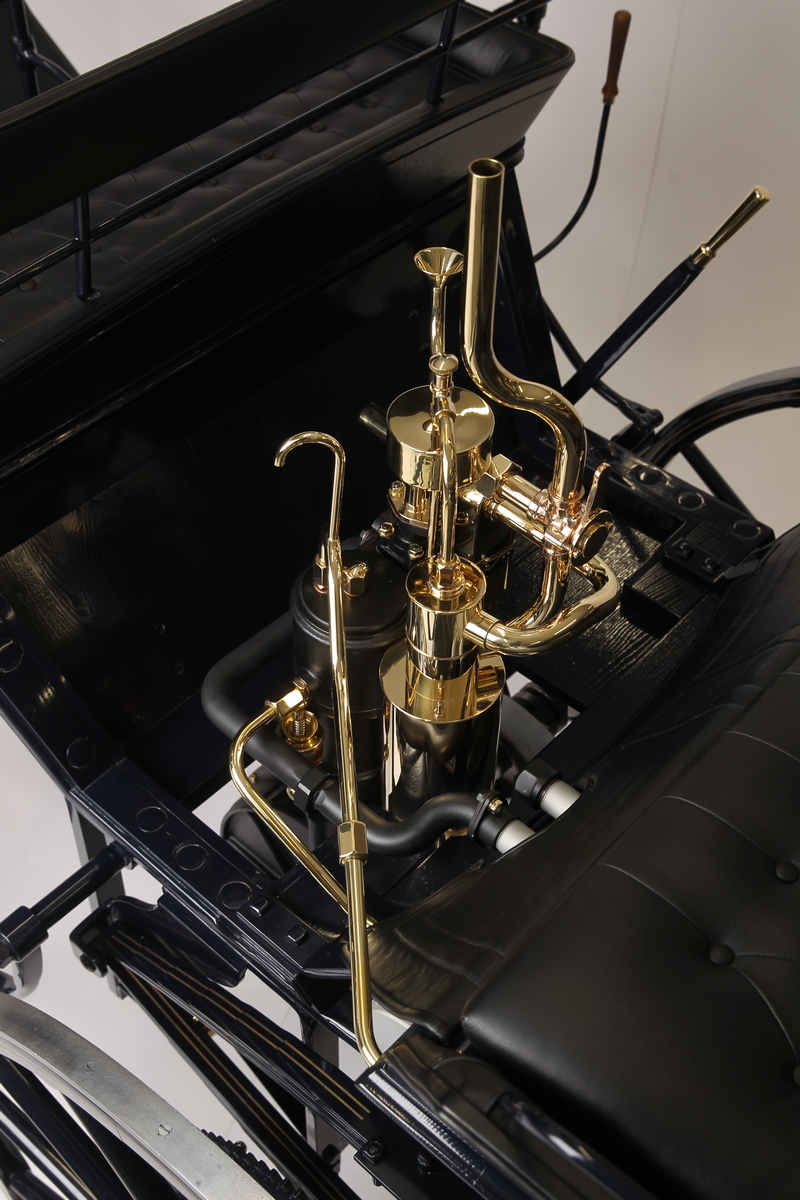

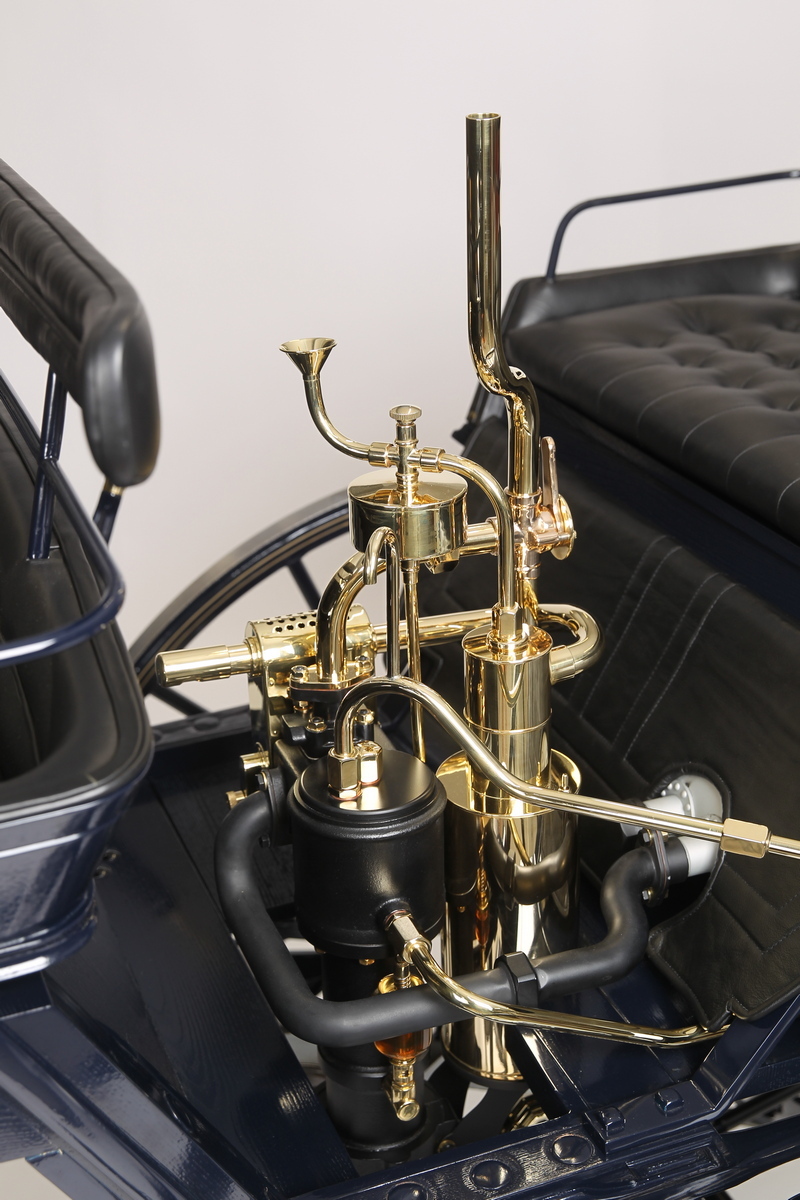

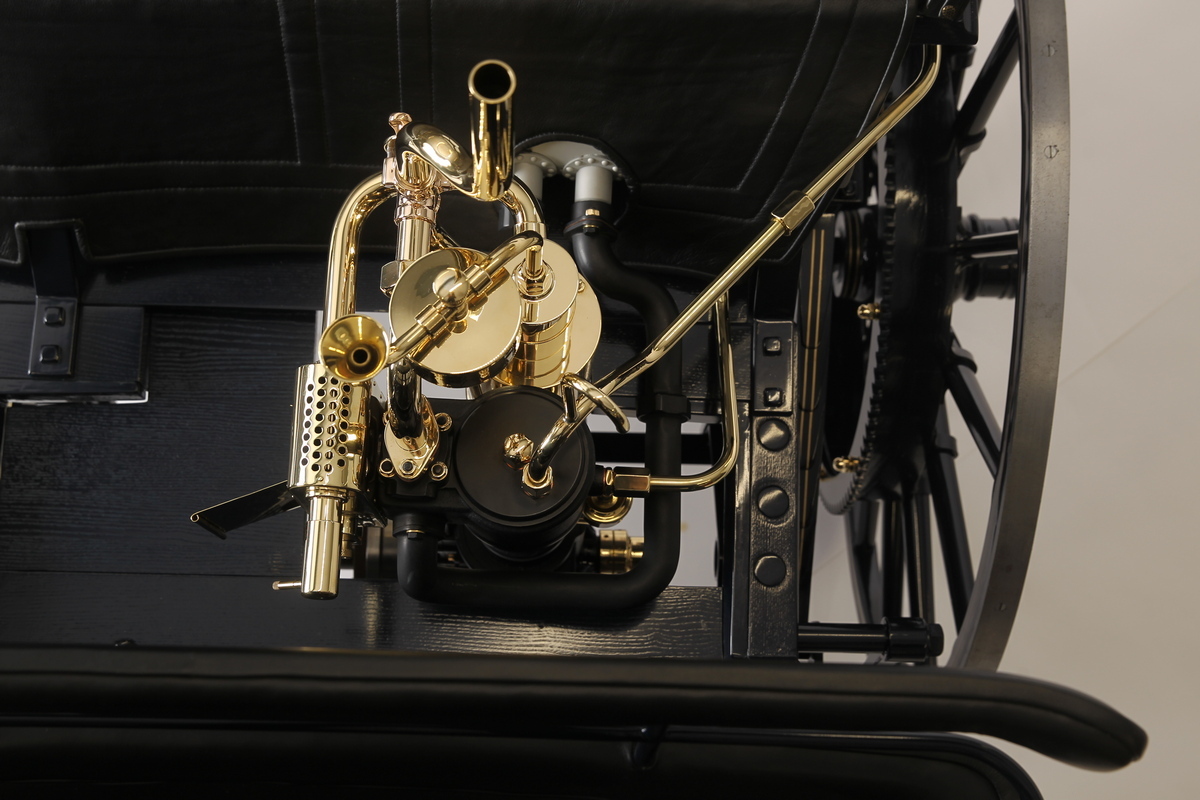

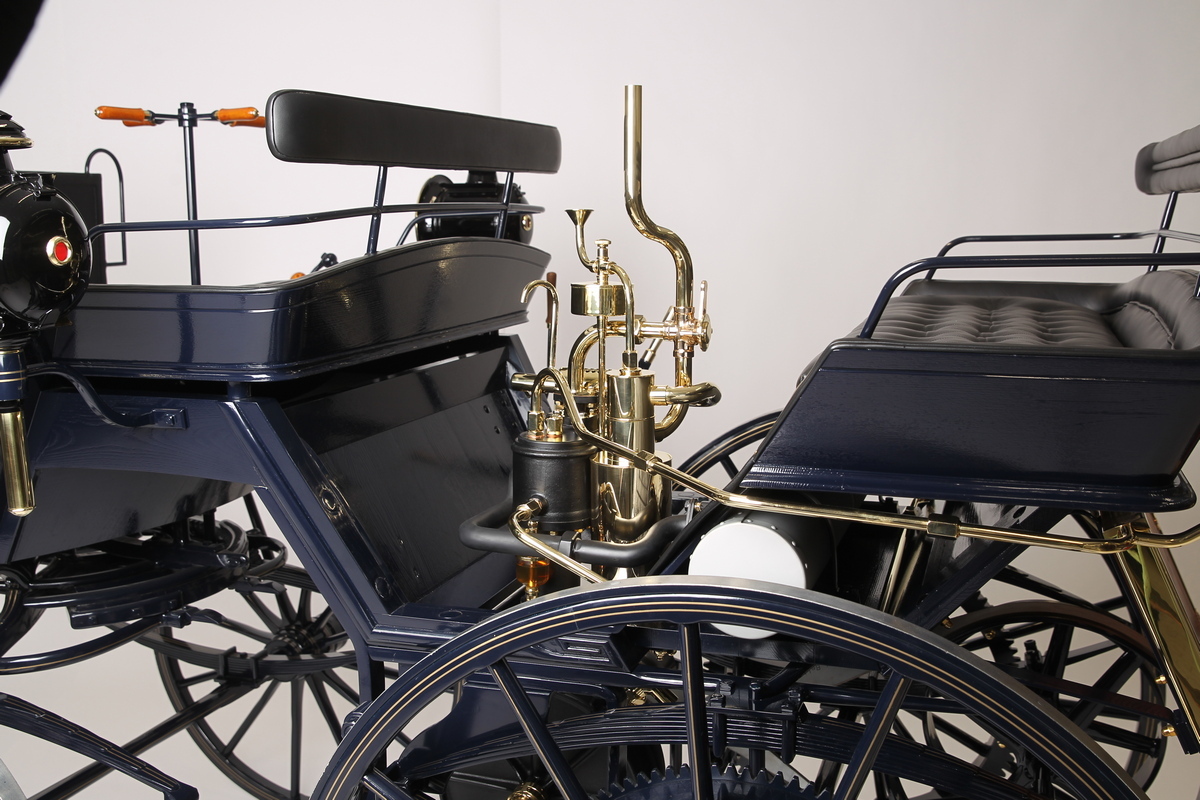

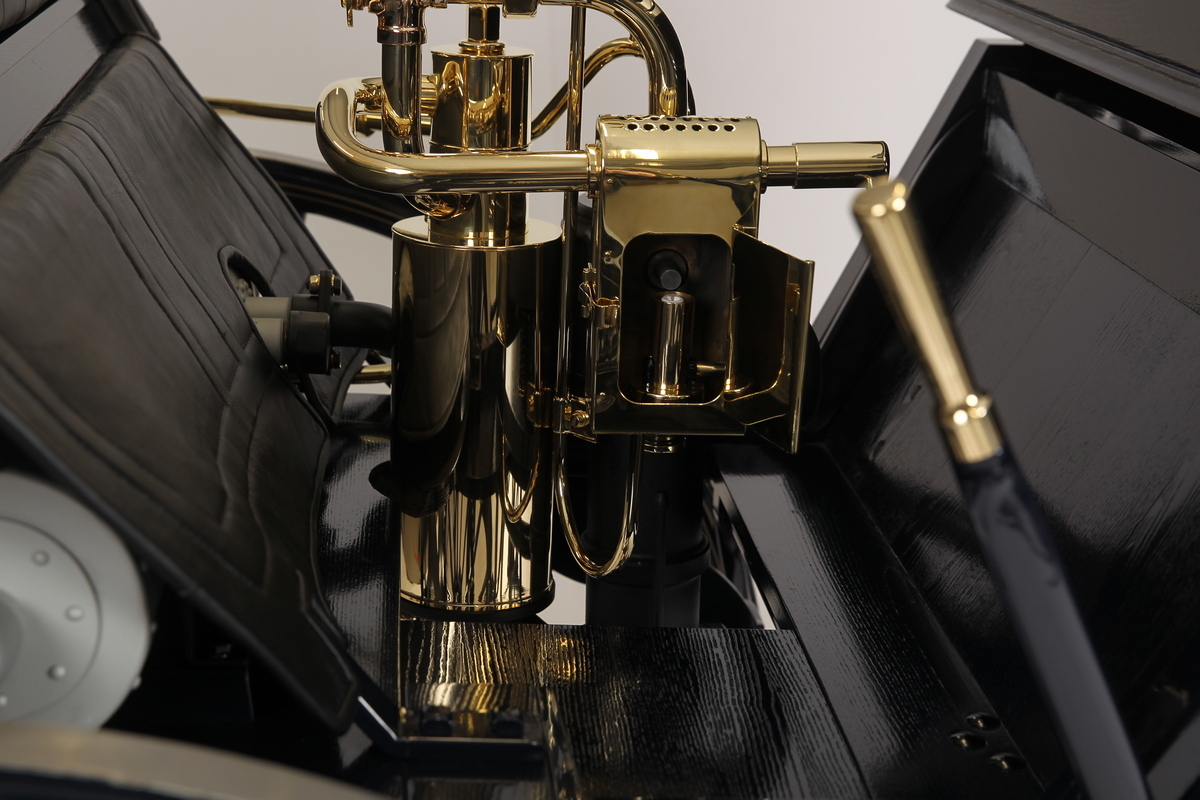

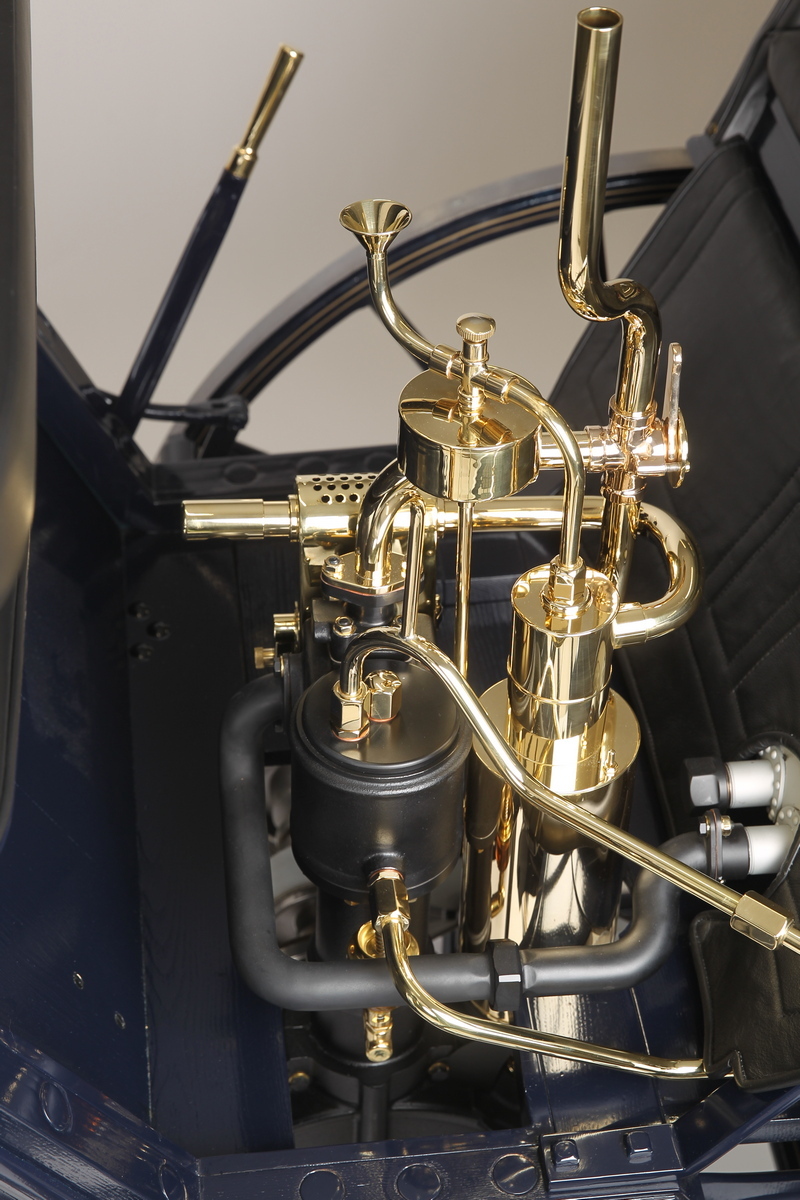

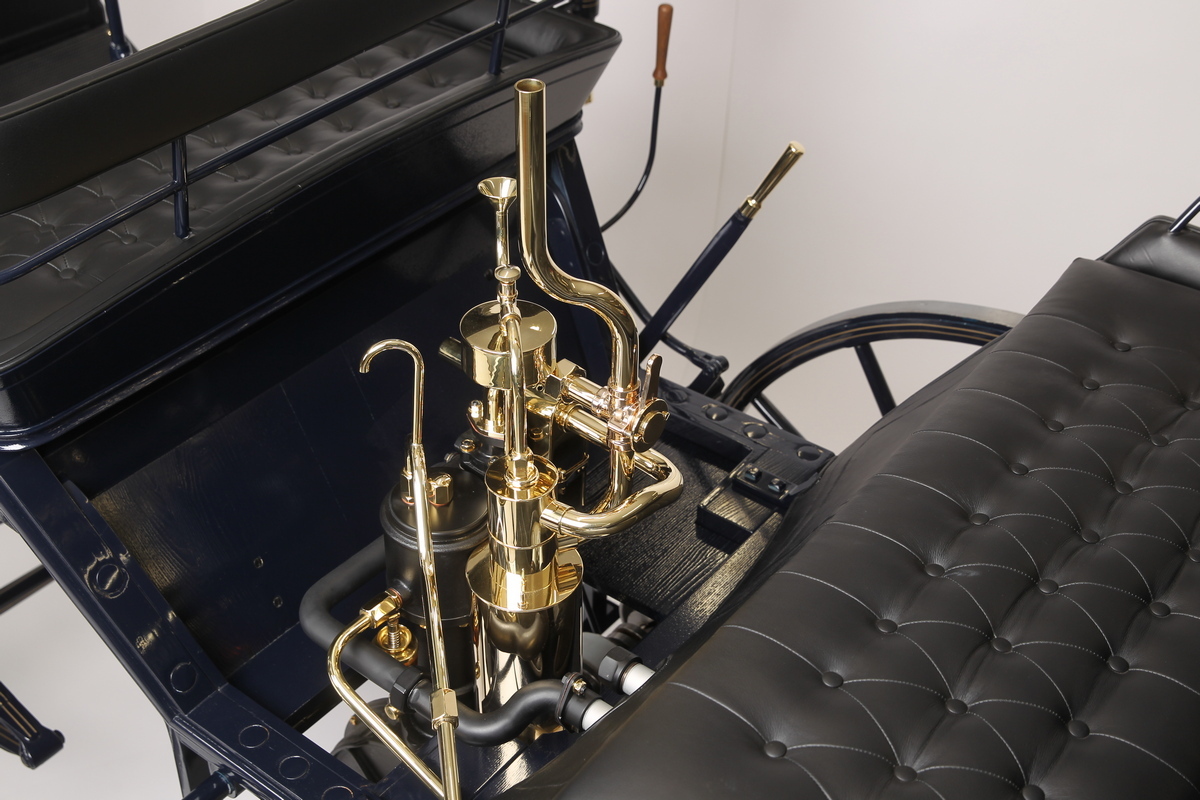

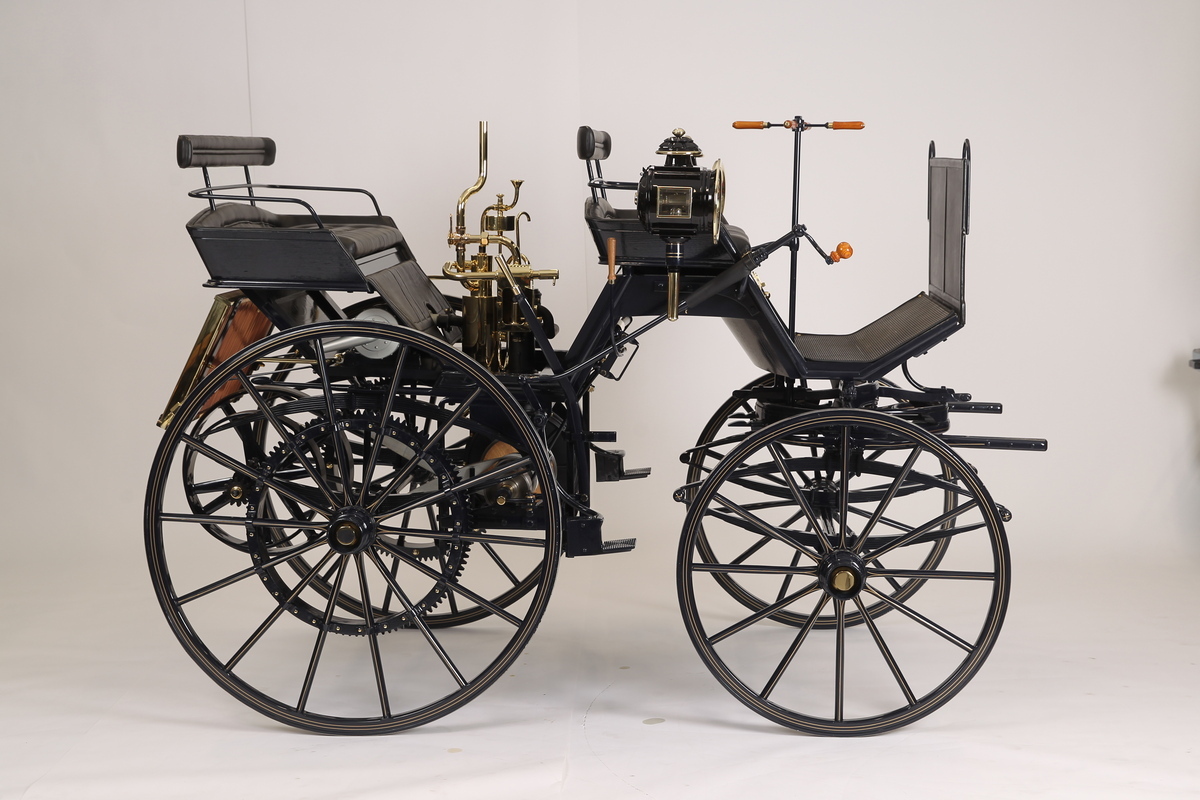

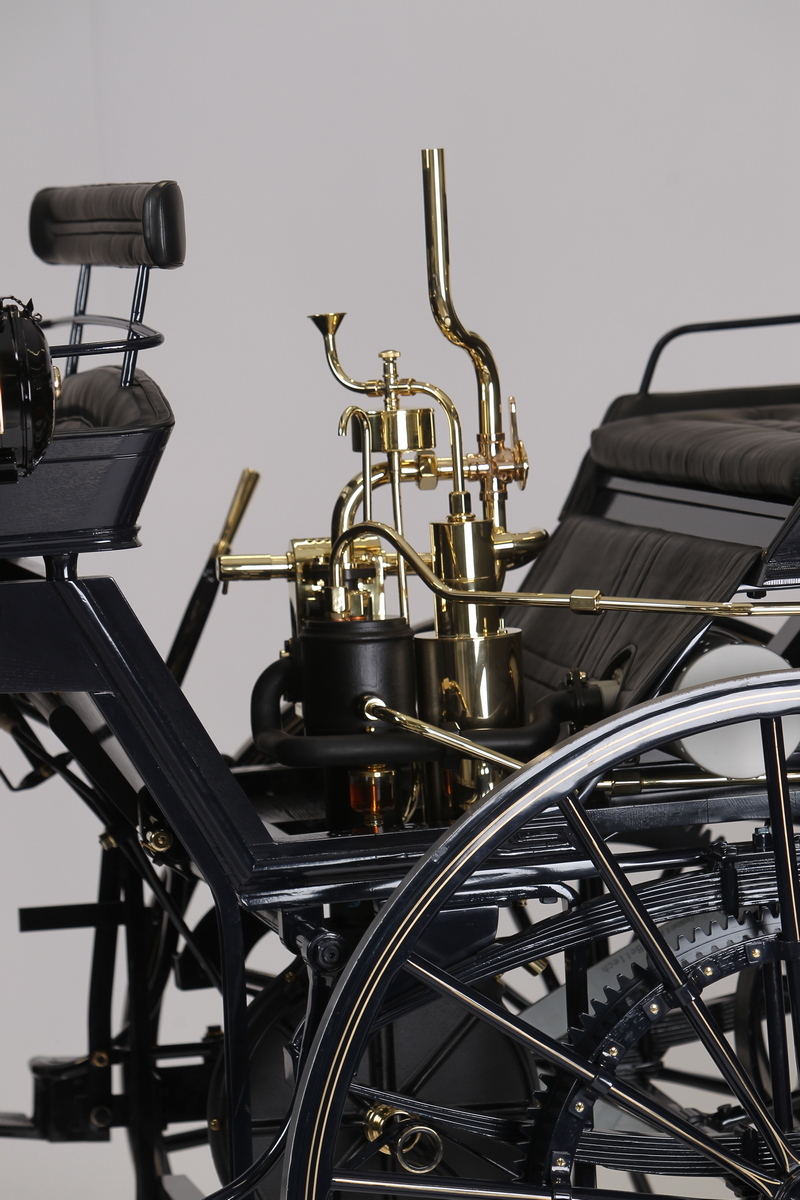

The replica of the 1886 Daimler Motorized Carriage is handcrafted as a high quality four-seater Americaine carriage in dark blue. A classical hand crank starts the water-cooled engine ("Grandfather Clock") with a displacement of 462 ccm and an output of 1.1 hp. After engaging the wooden cone clutch, the Grandfather Clock engine drives the sprockets on the rear wheels using flat belts, a countershaft and pinions. The Daimler Motorized Carriage is equiped with two gear ratios with different sized pulleys, which can be changed while driving.
Video
Details in pictures
Technical data
Model | 1886 Daimler Motorized Carriage |
engine | four stroke gasoline engine |
| cylinders | 1 / standing (close crankcase) |
| bore/stroke (mm) | 70/120 |
| displacement (ccm) | 462 |
| compression ratio | 2,5 |
| power output (hp at 1/min) | 1,1 / 600 |

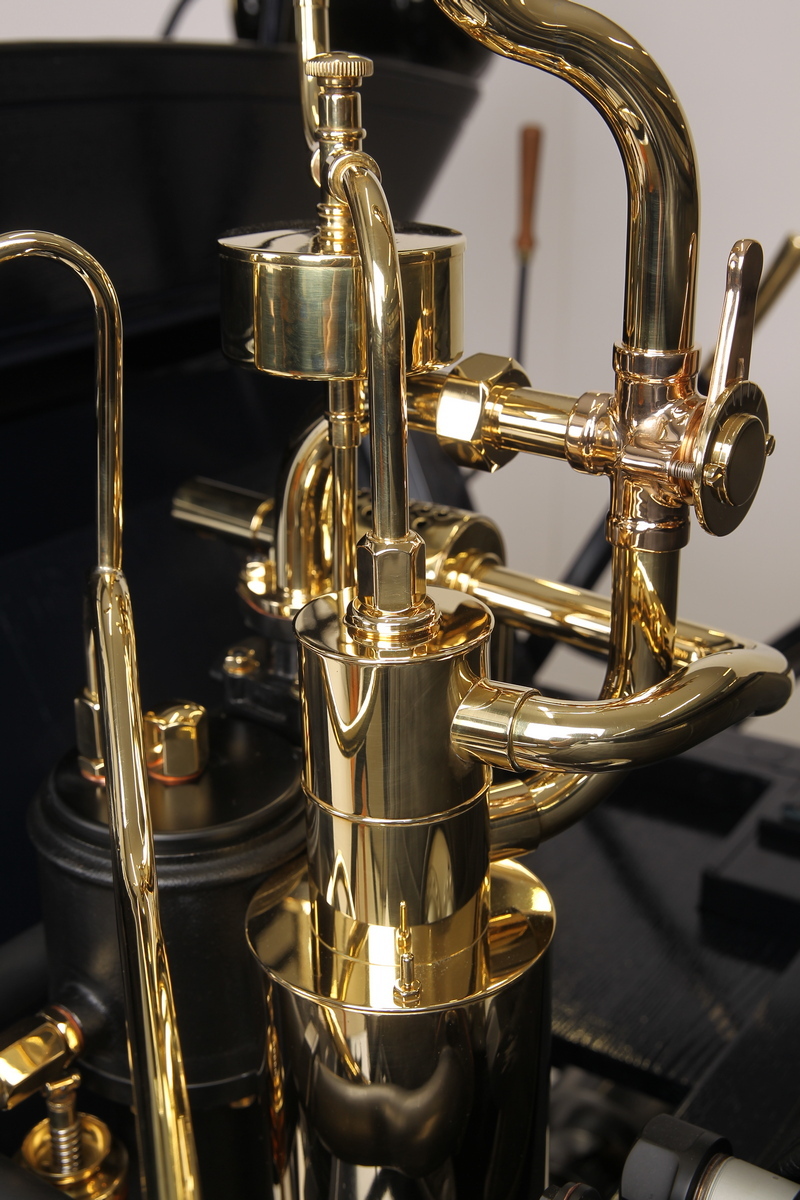

| carburetor | surface carburetor |
| cooling | water-cooled |
| lubrication | drip lubricator |
| ignition | glow tube ignition |

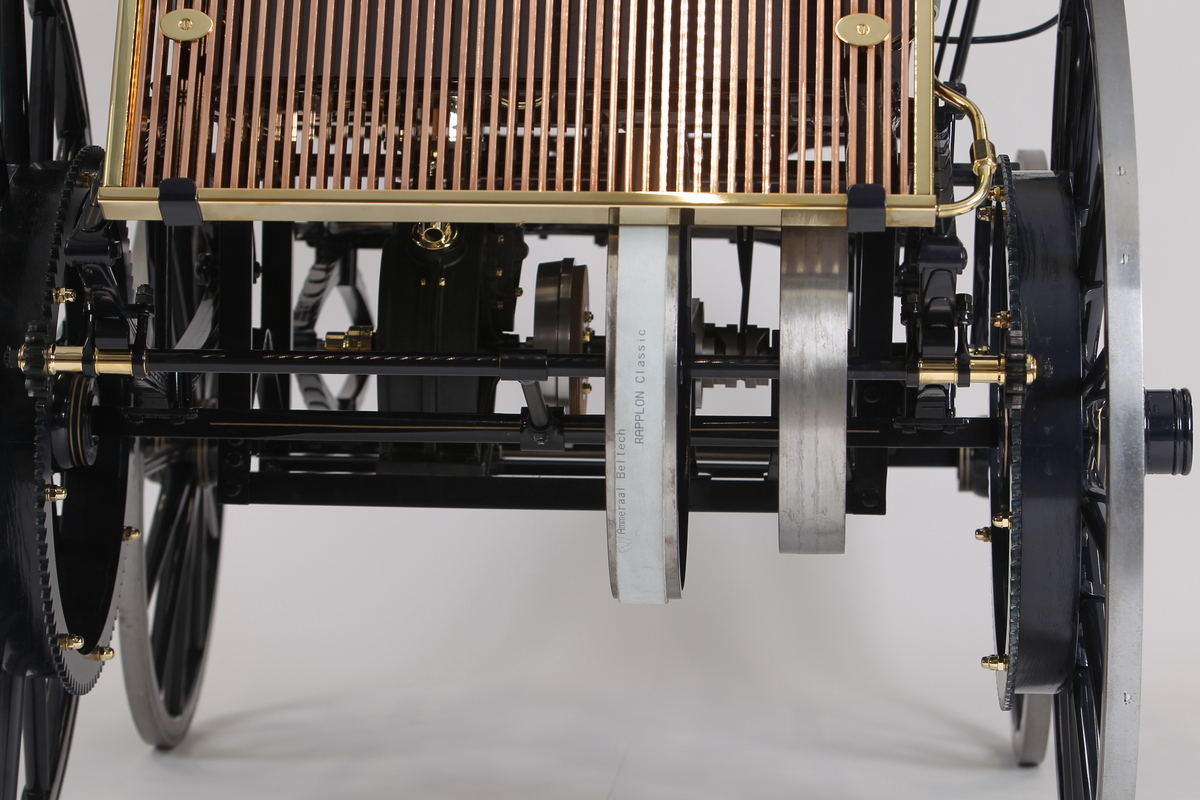

| drive | engine - flat belt - countershaft - pinion - sprockets on the rear wheels |

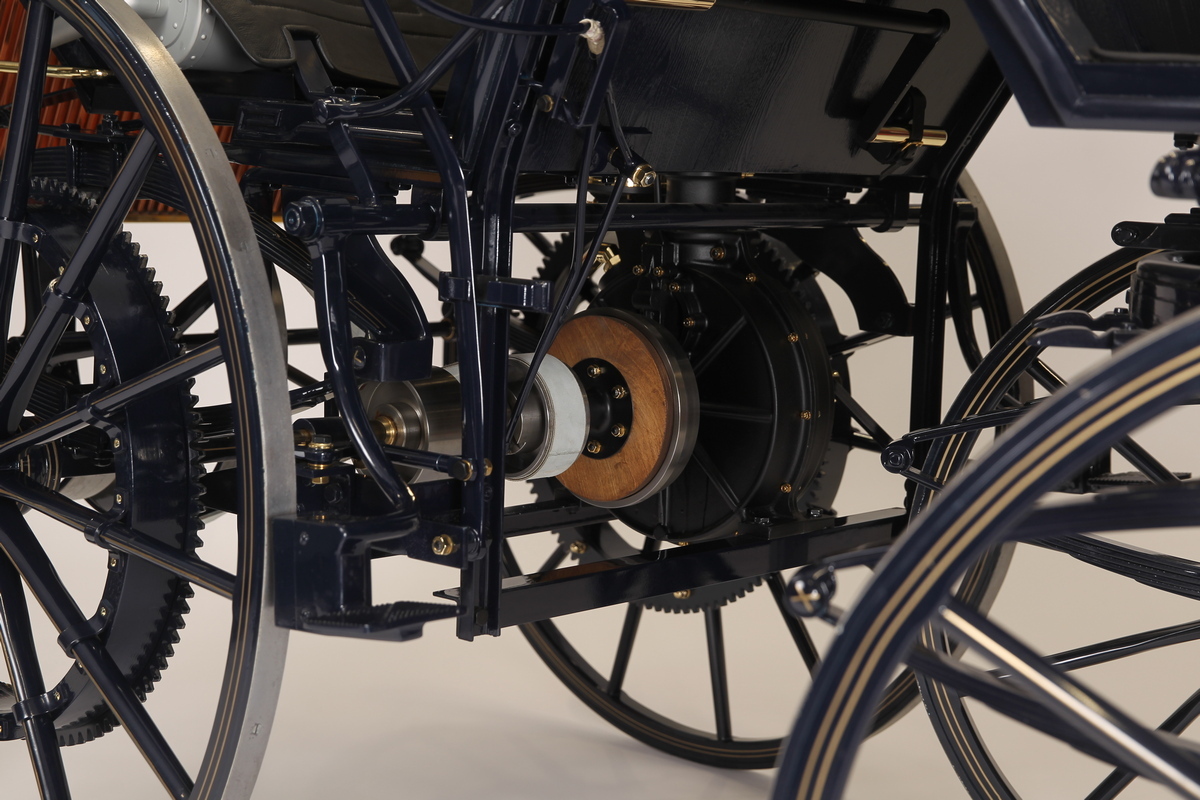

| clutch | disengageable wooden cone in cast iron inside taper on motor shaft, operated by hand lever on the right |
| transmission | 2 gear ratios, using pulleys of different sizes |
| steering | turntable steering, actuated via toothed arch segment and pinion |
| brake | brake shoe on rear wheels, operated by hand |
| wheelbase (mm) | 1300 |
| toe (mm) | 1160 |
| dimensions (mm) | 2530 x 1475 x 1695 |
| wheels | wooden spokes, front diameter 930 mm, rear diameter 1165 mm |
| tires | iron over wood rim, width 37 mm |
| weight (kg) | 290 |
